eightcolor flexographic printing machine

Flexo Printing Machine Manufacturer

Model NO. DCWY-61200 / 61400 / 61600

1, It use rubber plate or (photosensitive resin plate) as media plate, low cost & manpower saving.

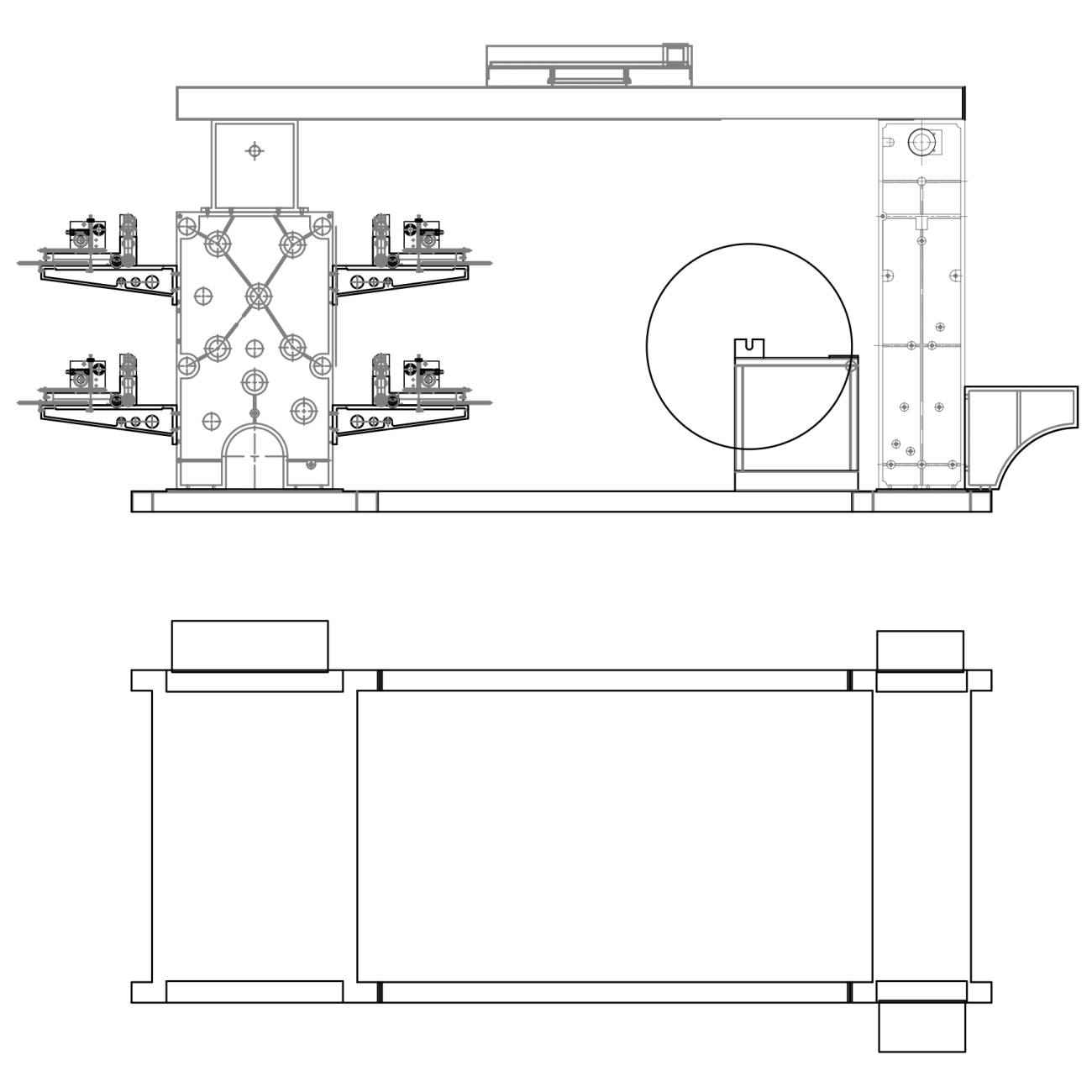

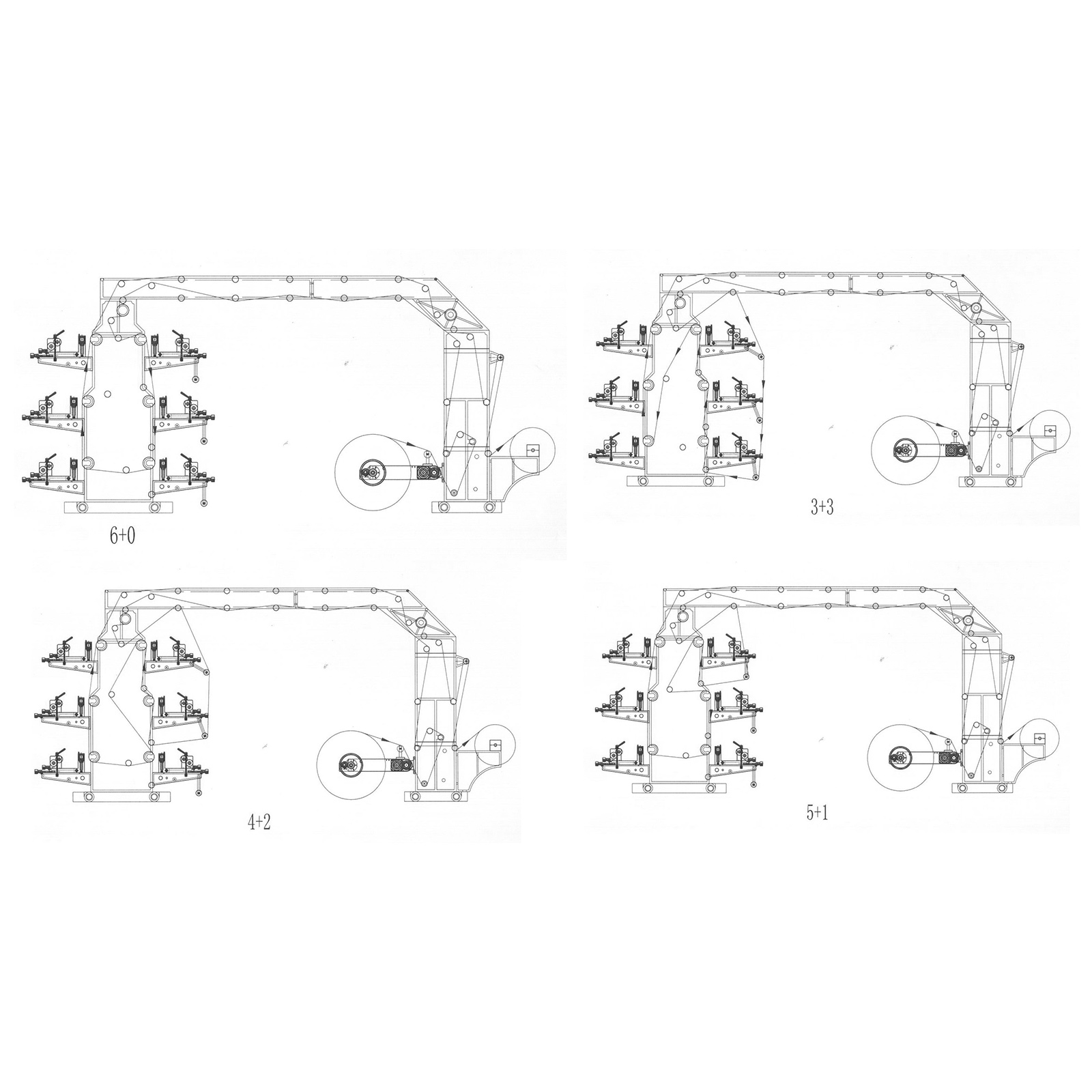

2, 2 color / 4 color /6 color optional.

3. Accurate sammeld ruck.

Quantity

.Procss flow

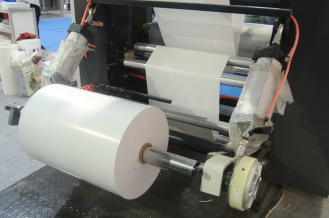

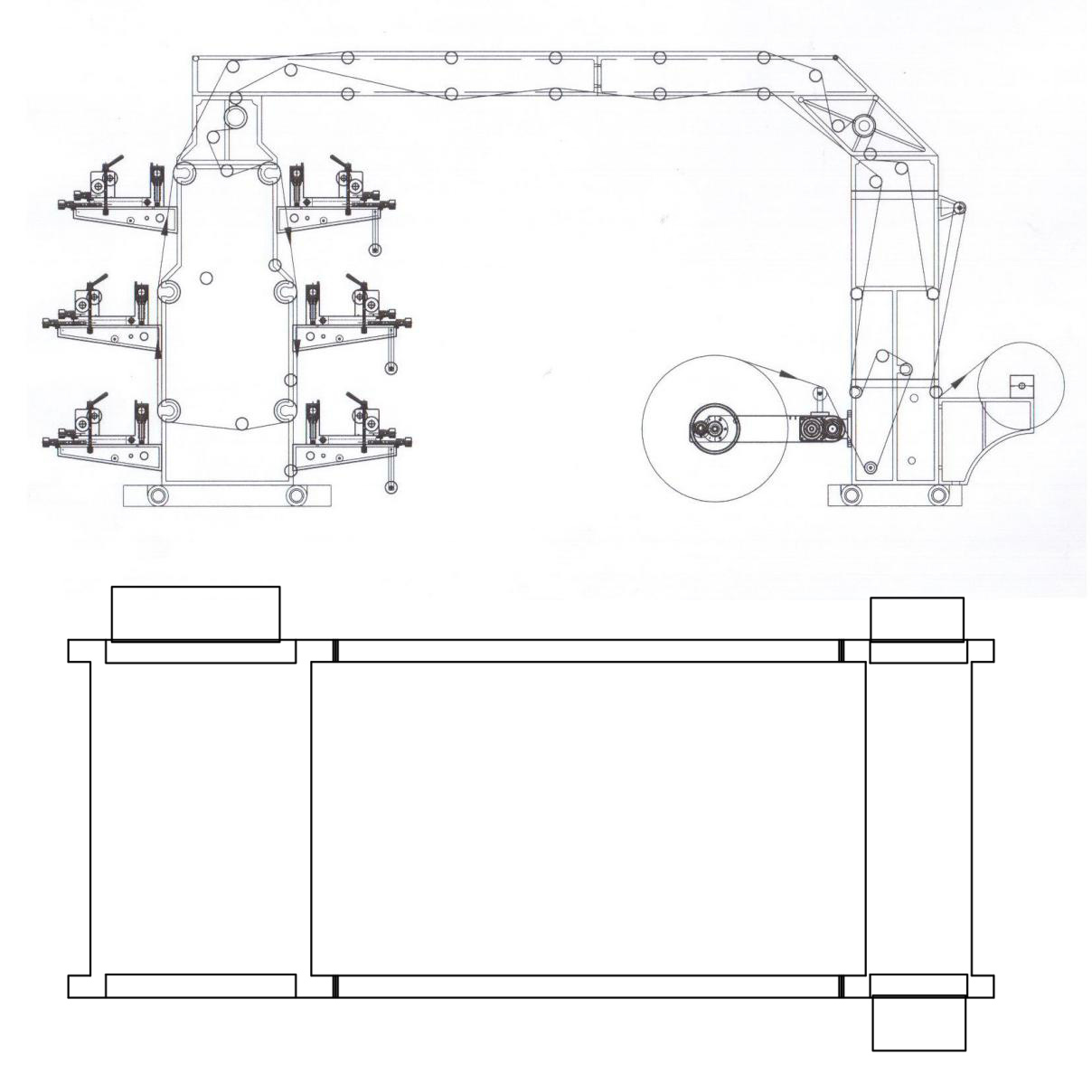

Auto non woven roll feeding-> Auto tension control, centralization->Printing->Heating and dry->Rewinding part

2. Printing samples:

II. Machine characteristics
1.Feature

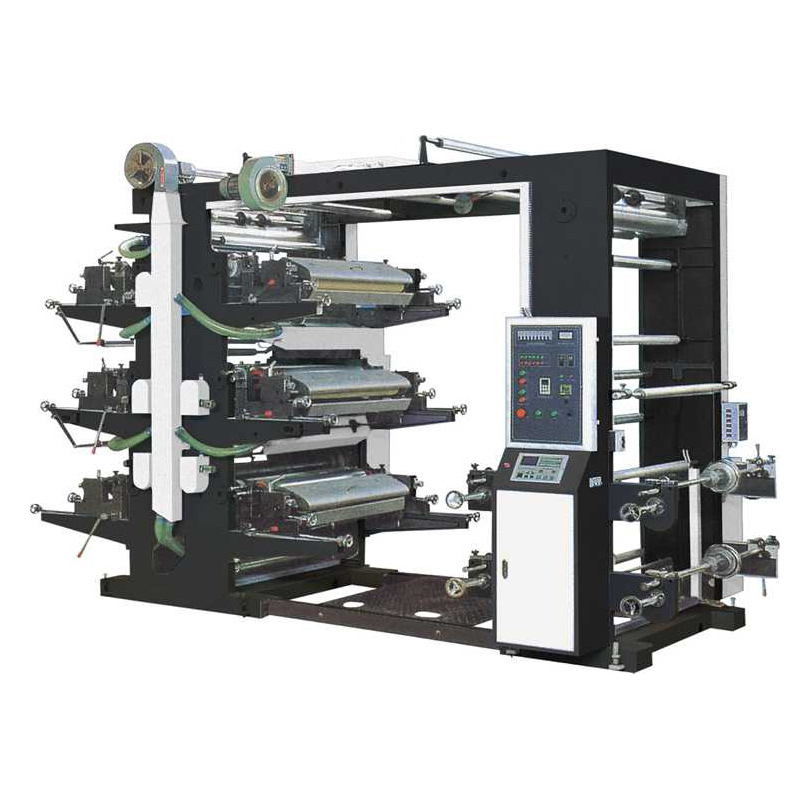

The machine adopts rubber plate or (photosensitive resin plate) as of plate printing machine, professional printing of non-woven material, it is the ideal equipment of non-woven fabric printing.

Simple operation, accurate
The meter counter can set printing quantity according to the number of the automatic stop, broken material automatic stop.
Include the ink roller, uniform process.
Reliable drying system, with high-speed rotation, it will automatically open circuit.
360 degrees of continuous adjustable longitudinal sets of equipment.
Frequency control, to adapt to the different printing speed.

Suitable Material:

No woven	15-150g/㎡
Woven	15-120g/㎡	Weave fabric	15-500g/㎡

PVC	10-120g/㎡	OPP	10-120g/㎡
PE	10-120g/㎡	PET	10-120g/㎡
CPP	10-120g/㎡

Kraft paper	40-350g/㎡	single-sided coated paper	30-350g/㎡
copy paper	15-350g/㎡	firecrackers and paper	40-350g/㎡
paper money and incense	25-350g/㎡	silicone paper	50-350g/㎡
coated paper	30-350g/㎡	dust-free paper	25-350g/㎡
Release paper	40-350g/㎡	composite paper	30-350g/㎡
thermal sensitive paper	30-150g/㎡

1. Machine Technical Data

SN	Item	61200	61400	61600
1	Roller width	1200mm	1400mm	1600mm
2	Max diameter of material roll	Ø600mm
3	Printing width	50-1160mm	50-1360mm	50-1560mm
4	Printing speed	80m/min	80m/min	80m/min
5	Material	Non-woven fabric, Paper, Film(PVC.PE.BOPP.PE), Aluminum foil
6	Printing length	280-1000mm (customized by client)
7	Transmission drive type	Synchronous belt
8	Thickness of plate	2.28mm
9	Power supply	380V
10	Total power	30KW	33KW	35KW
11	Overall size	L5500 * W2200 * H2900 mm	L5500 * W2400 * H2900 mm	L5500 * W2600 * H2900 mm
12	Weight of Machine	5500KGS (40HQ*1)	5700KGS (40HQ*1)	6000KGS (40HQ*1)

Main equipment and Description

SN	Item	Manufacturer	Qty	Specification	Picture

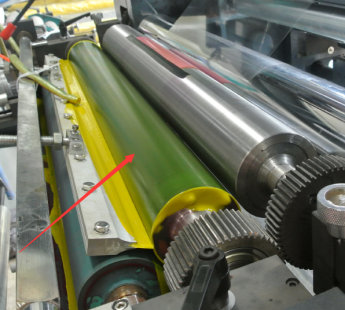

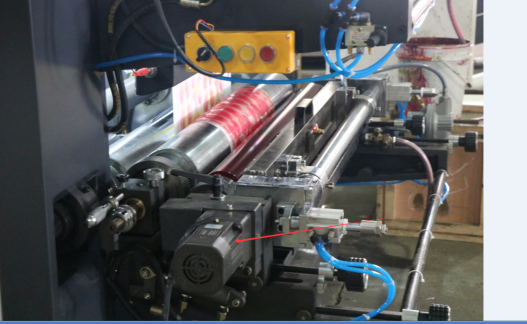

1	Plate roller	RUIAN CITY	6SETS	Standard 400mm; Can be customized plate range 191--1000mm
2	Rubber Roller	CHINA	6SETS	Transport the ink to Anilox roller

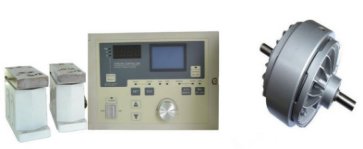

3	Automatic tension control system &magnetic power	CHINA	2SETS

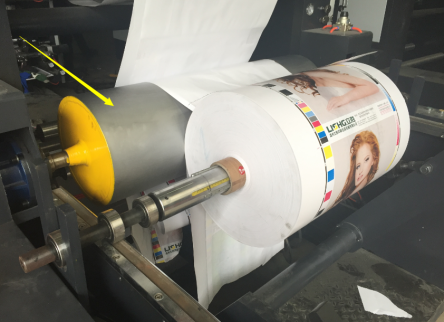

4	Air shaft	CHINA	2SETS
5	Automatic correcting deviation system (EPC)	CHINA	1SET	Photoelectric eye

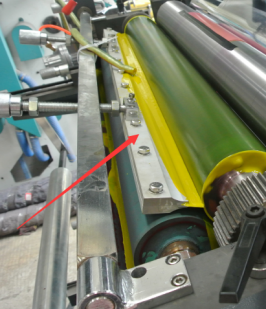

6	Doctor Blade		6SETS

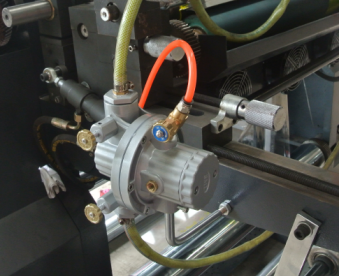

7	Ink pump		6SETS	1. Automatic suck the ink 2. Adopt the automatic circle system
8	Ceramic Anilox Roller	CHINA	6SETS	300-600 lines/inch

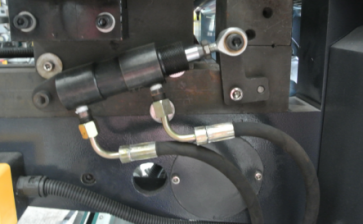

9	Up and down plate		6SETS	Adopt the hydraulic pressure rising and down the printing plate automatically

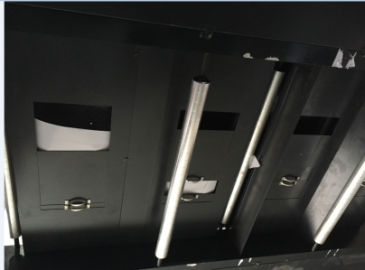

10	Heat dryer (each color with 1 set heater, one long heater channel on the top)		1SET	1.Big heat dryer with blowing wind drying fast. 2.With Infrared drying and heat blowing drying.

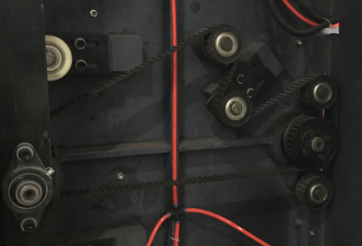

11	Synchronous belt	JAPEN		Stable transmission, with high register precision
12	Main motor	MAILI	1SET	3.7kw
13	Ink operation motor	MAILI	6SET	60w
14	Inverter of main motor	TAIWANDELTA	1SET
15	Rewinding motor		1SET
16	Contactor	SCHNEIDER
17	Button Switch	SCHNEIDER
18	Breaker	SCHNEIDER
19	Counter	CHNT
20	Hint light	SCHNEIDER
21	Revolve Button Switch	SCHNEIDER
22	Urgent Stop Switch	SCHNEIDER
23	Relay	SCHNEIDER
24

Optional device(need extra money to get perfect machine)
1.PLC Control Control panel
2.Autopneumatic/hydraulic loading&unloading. It is easy to loading and unloading the material.

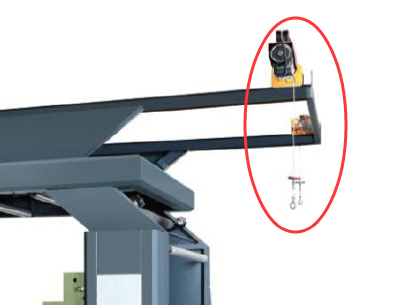

3.Joist barrow It’s easy to lift the plate roller

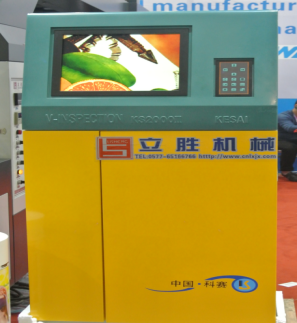

4.Video Inspection Check the printing quality on the video screen.

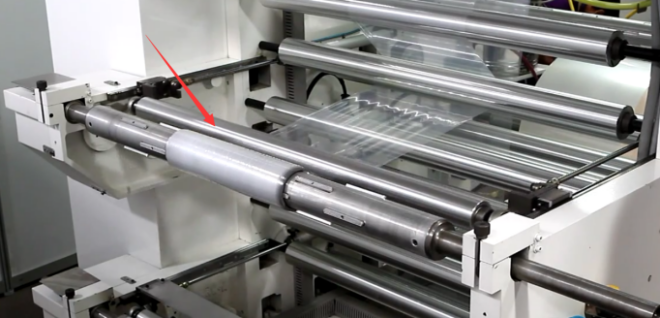

5.Big roller friction Rewinding type Rewinding the material more tight and keep in line. Special for paper and PP woven.

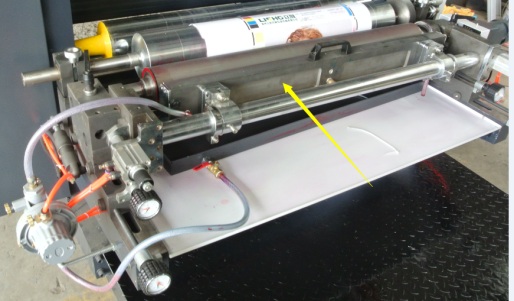

6.Chamber doctor Blade Good for high speed. Will not splashing the ink even high speed running.
7.Press roller for tight Rewinding Rewinding the material more tight and keep in line. Special for films.
